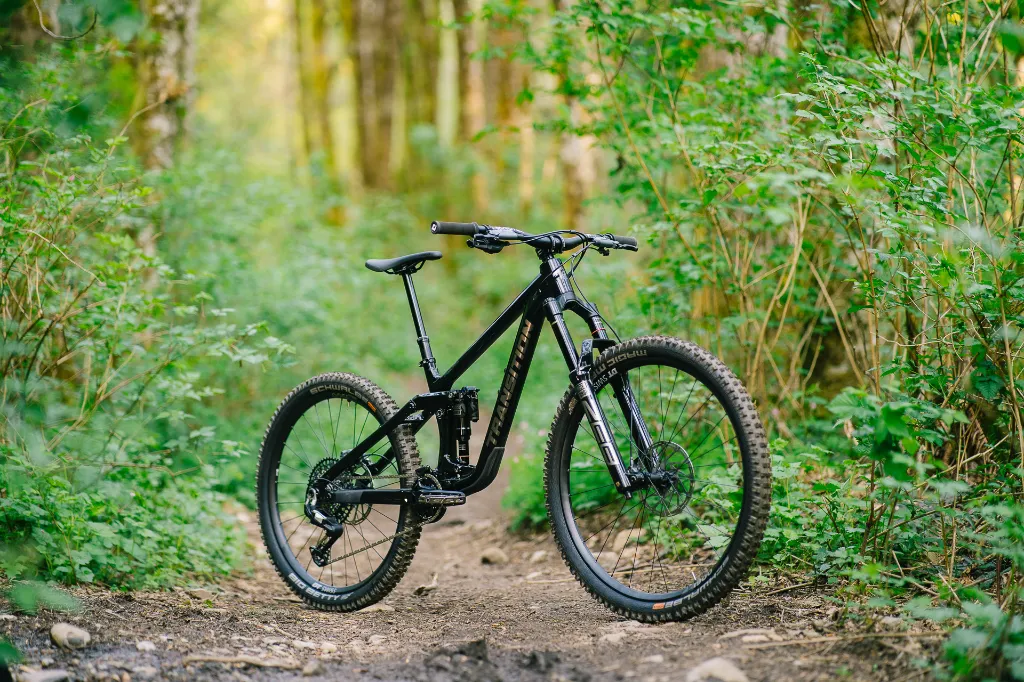

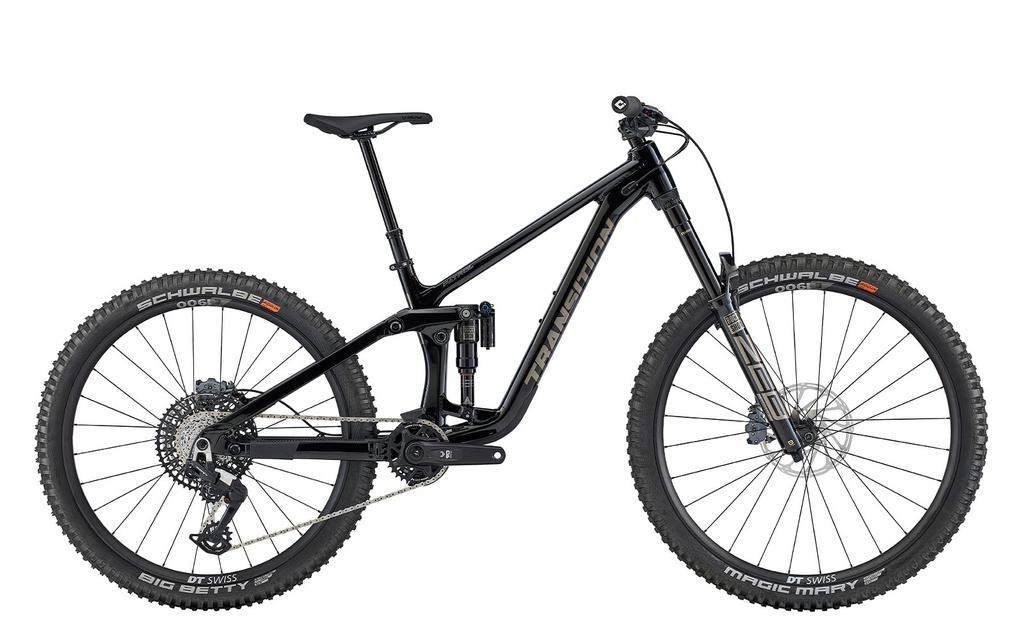

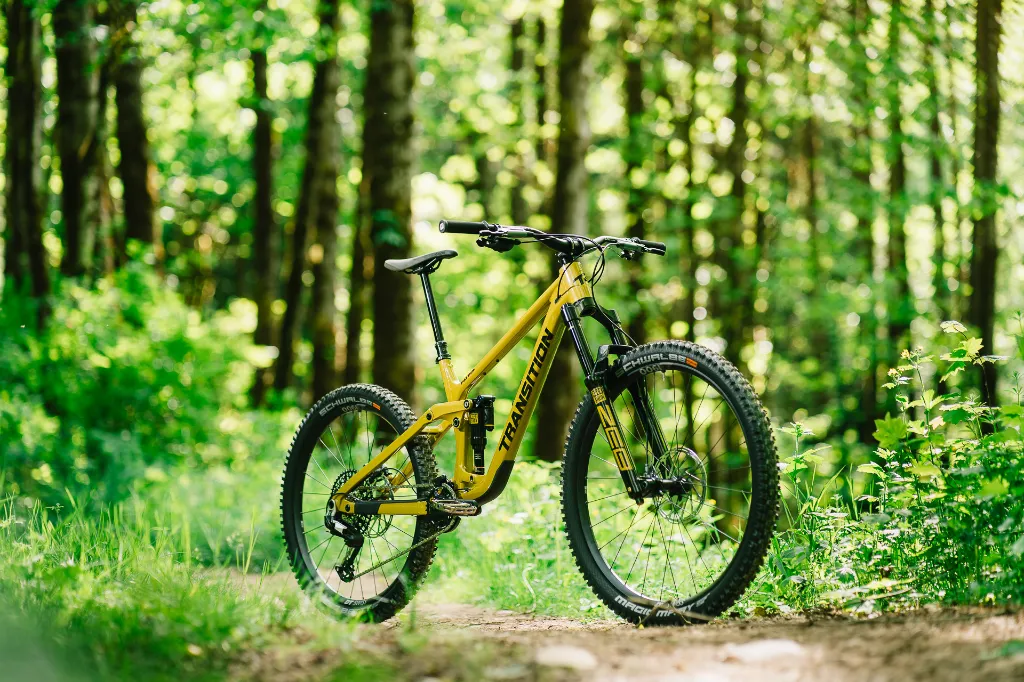

Patrol Alloy Eagle 90

La Patrol sfoggia un nuovo look, ma è sempre pronta a tutto e senza rimorsi quando si tratta di affrontare i sentieri con grinta. Essendo una delle bici più longeve della nostra gamma, era la candidata perfetta per un aggiornamento. La geometria rivista, progettata per ospitare ruote da 29" all’anteriore e 27.5" al posteriore, insieme a una nuova taratura delle sospensioni, potrebbe farti pedalare tutto il giorno… e poi tutta la notte. Con salti, trick, pompate e grida di entusiasmo lungo il percorso, la nuova Patrol è nata per il divertimento. Dai bike park ai sentieri locali, a lei non importa dove pedali, ma solo quanto ti stai divertendo.

Maggiori informazioni

Specifiche

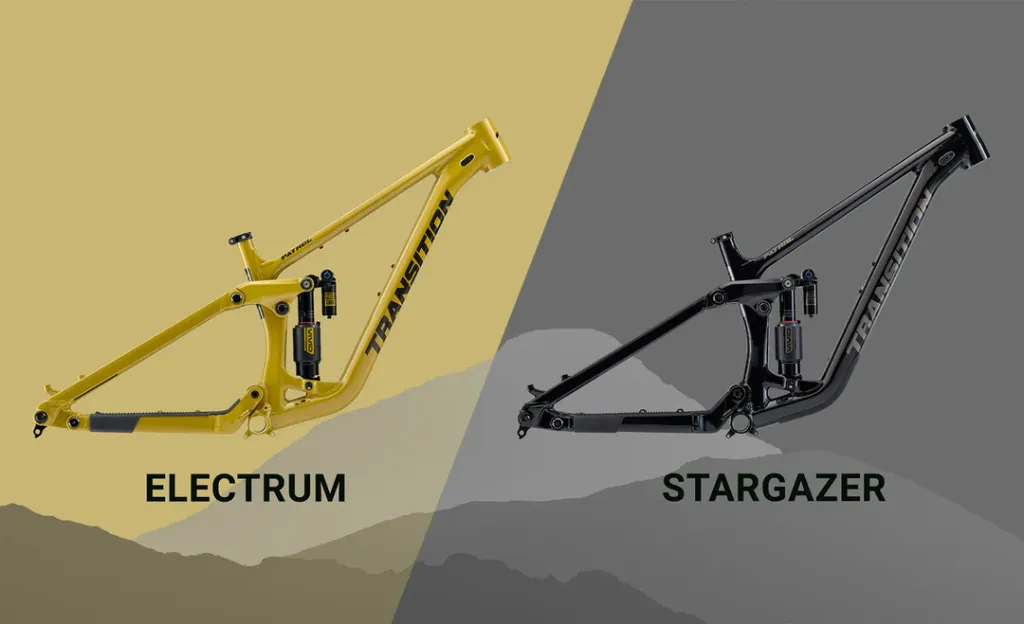

Colore	Stargazer, Electrum
Taglia	S, M, L, XL
Brand	Transition
Materiale	Alluminio
Allestimento	Eagle 90
Tipologia	Bicicletta completa
Anno di uscita	2025

Specifiche di montaggio

Model	Patrol Alloy E70	Patrol Alloy E90
Color Options	Electrum (Matte) & Stargazer (Gloss)	Electrum (Matte) & Stargazer (Gloss)
Frame	Patrol Alloy 160mm	Patrol Alloy 160mm
Wheel Size	Mixed	Mixed

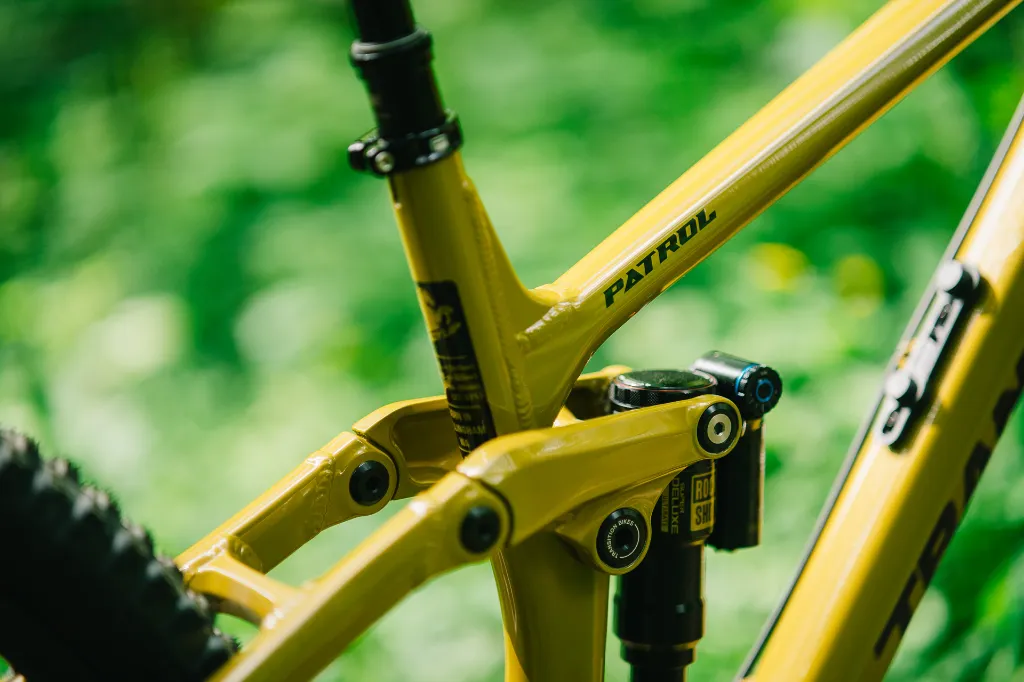

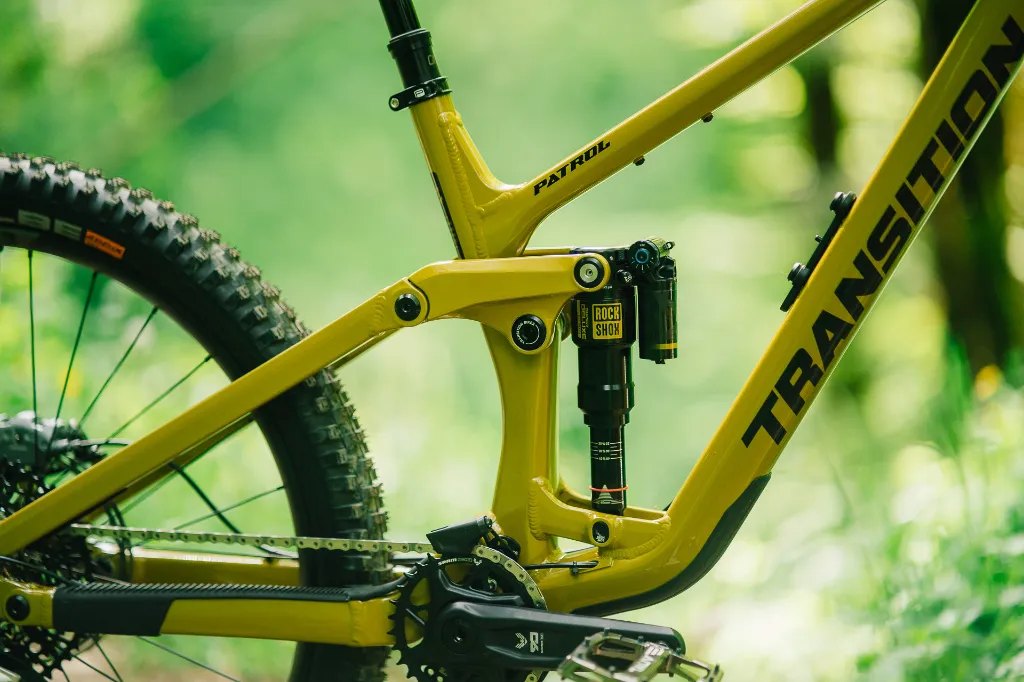

Rear Shock	RockShox Super Deluxe Base (205x60mm)	RockShox Super Deluxe Ultimate (205x60mm)
Fork	RockShox Domain Gold RC (160mm)	RockShox ZEB Ultimate (160mm)
Headset	FSA NO.55R/57	FSA NO.55R/57
Stem	RaceFace Aeffect R (40mm)	Burgtec Enduro MK3 35 (35mm)

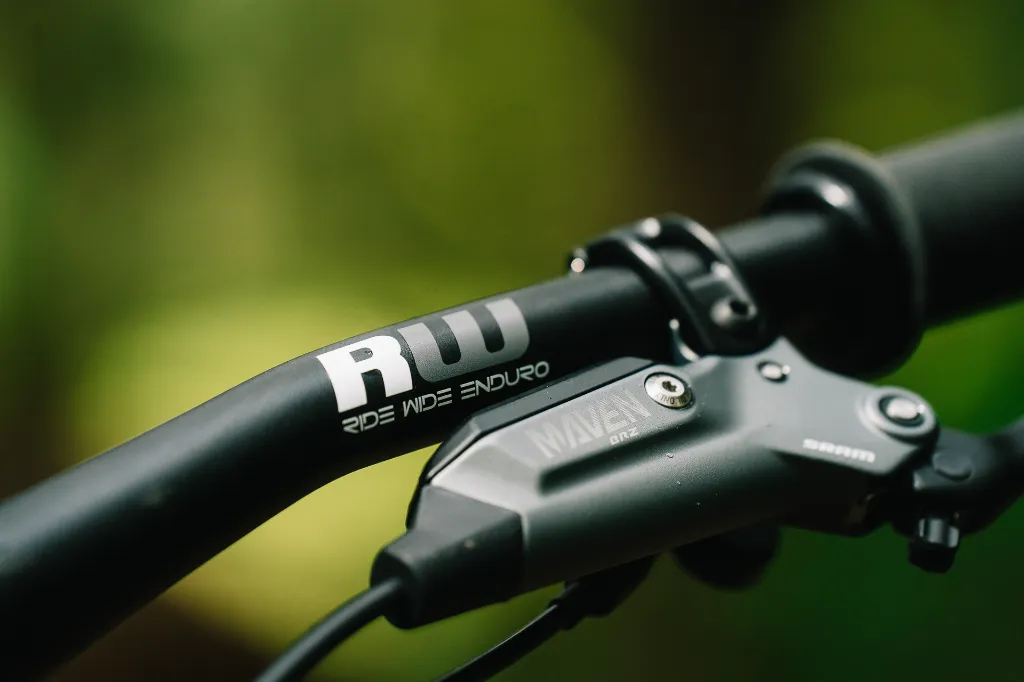

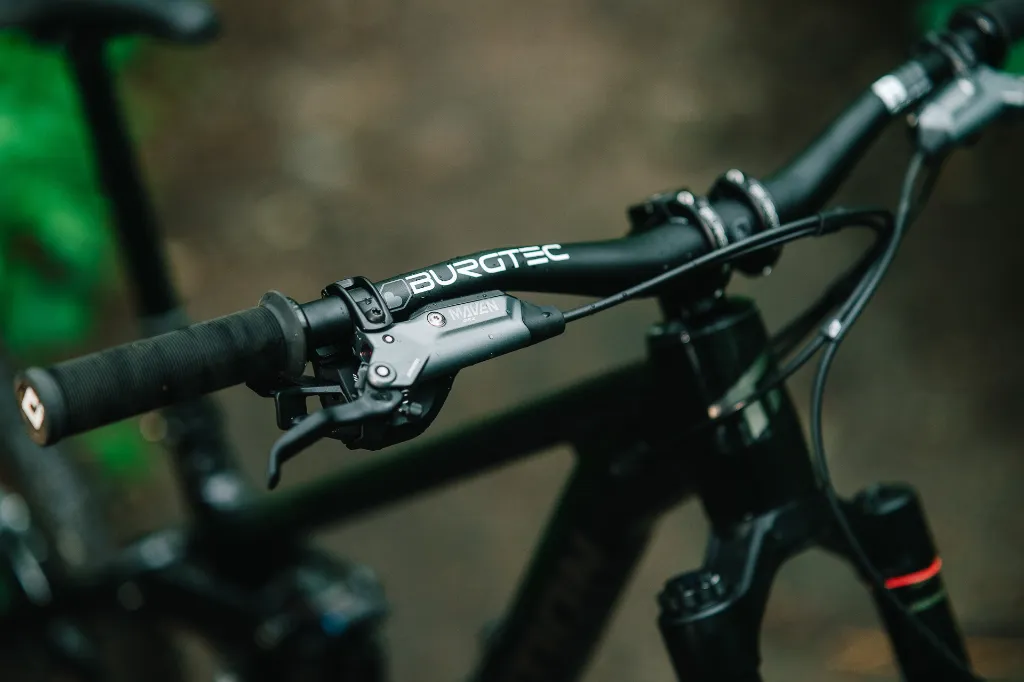

Handlebar	RaceFace Chester 35	Burgtec Ride Wide Alloy Enduro Handlebar
	SM(780x20mm), MD/LG(780x35mm)	SM(800x20mm), MD(780x30mm), LG/XL(800x38mm)
Grips	ODI Longneck V2.1 Lock-On	ODI Longneck V2.1 Lock-On
Saddle	SDG Bel Air 3	SDG Bel Air 3
Seatpost	SDG Tellis 31.6mm	OneUp Dropper Post
	SM(150mm), MD(170mm), LG(200mm), XL(230mm)	SM(150mm), MD(190mm), LG(210mm), XL(240mm)
Brakes	SRAM Maven Base	SRAM Maven Bronze
Rotors	SRAM Centerline (200mm)	SRAM Centerline (200mm)
Shifter	SRAM Eagle 70 MMX	SRAM Eagle 90 MMX
Derailleur	SRAM Eagle 70	SRAM Eagle 90
Cassette	SRAM XS 1270 (10-52t)	SRAM XS 1275 (10-52t)
Chain	SRAM Eagle 70	SRAM Eagle 90

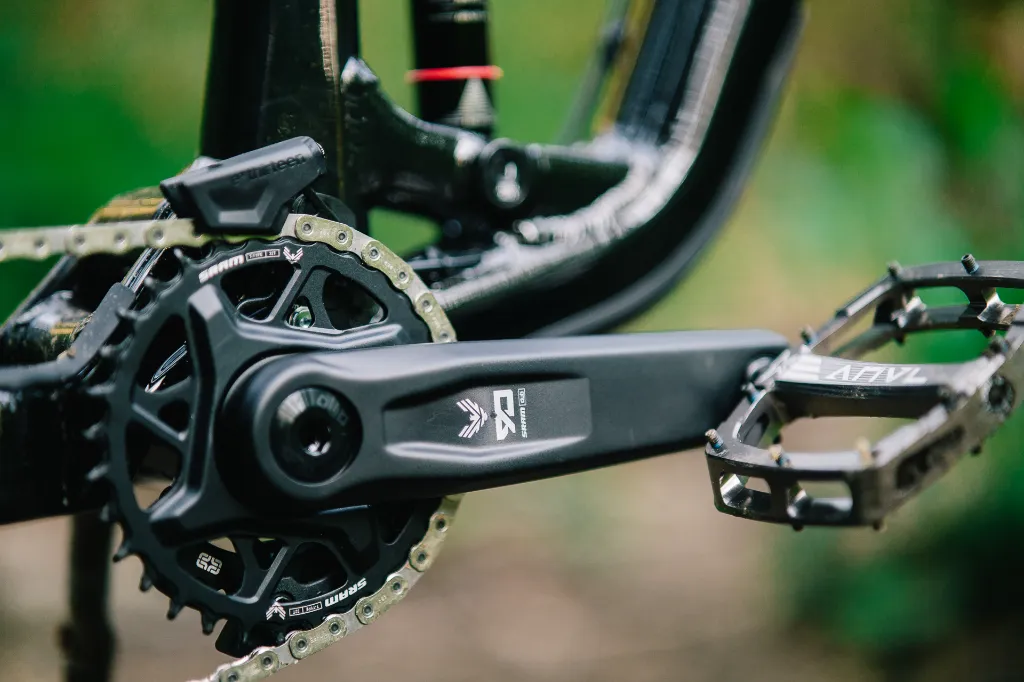

Crank	SRAM Eagle 70 DUB (32t/165mm)	SRAM Eagle 90 DUB (32t/165mm)
Chainguide	e13 Vario Chainguide – Enduro	e13 Vario Chainguide – Enduro
Rims	WTB ST Tough i30	Stans S1 1900 Spline 30
Spokes	Pillar Double Butted	DT Swiss Champion
Hubs	Novatech D791SB/D902SB	DT Swiss 370 Ratchet LN
Tire/Front	Maxxis Assegai 3C EXO/TR (2.5)	Schwalbe Magic Mary, Super Trail, Soft (2.4)
Tire/Rear	Maxxis Minion DHRII 3C EXO/TR (2.4)	Schwalbe Big Betty, Super Trail, Soft (2.4)
Included	Tubeless Valves & Sealant	Tubeless Valves & Sealant

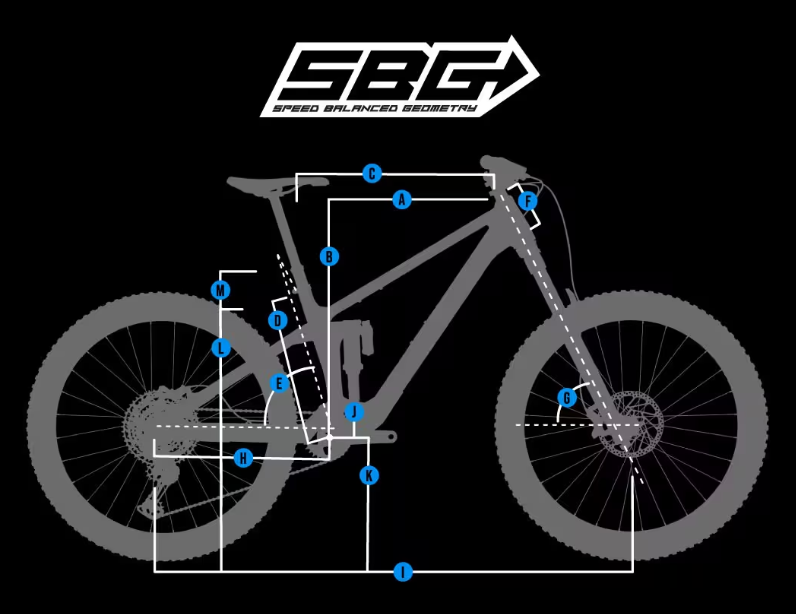

Geometrie

	SM	MD	LG	XL
	High \| Low	High \| Low	High \| Low	High \| Low
Fits Rider Heights	5'0" – 5'7"	5'6" – 5'11"	5'9" – 6'3"	6'1" – 6'7"
A. REACH	420 \| 415	455 \| 450	480 \| 475	510 \| 505
B. STACK	623 \| 628	623 \| 628	632 \| 637	641 \| 646
C. EFFECTIVE TOPTUBE LENGTH	543 \| 540	578 \| 575	606 \| 603	639 \| 636
D. SEATTUBE LENGTH	360	390	430	460
E. EFFECTIVE SEATTUBE ANGLE	79.6° \| 79.1°	78.8° \| 78.3°	78.1° \| 77.6°	77.5° \| 77°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780
ACTUAL SEATTUBE ANGLE	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°
SEATTUBE OFFSET AT BOTTOM BRACKET	100	100	100	100
F. HEADTUBE LENGTH	100	100	110	120
G. HEADTUBE ANGLE	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°
H. CHAINSTAY LENGTH	434 \| 436	434 \| 436	440 \| 442	440 \| 442
I. WHEELBASE	1196 \| 1198	1231 \| 1233	1266 \| 1268	1301 \| 1303
J. BOTTOM BRACKET DROP (FRONT)	35 \| 42	35 \| 42	35 \| 42	35 \| 42
J. BOTTOM BRACKET DROP (REAR)	15 \| 22	15 \| 22	15 \| 22	15 \| 22
K. ESTIMATED BOTTOM BRACKET HEIGHT	340 \| 333	340 \| 333	340 \| 333	340 \| 333
STANDOVER HEIGHT	675 \| 685	690 \| 700	705 \| 715	720 \| 730

	SM	MD	LG	XL
	High \| Low	High \| Low	High \| Low	High \| Low
Fits Rider Heights	5'0" – 5'7"	5'6" – 5'11"	5'9" – 6'3"	6'1" – 6'7"
A. REACH	420 \| 415	455 \| 450	480 \| 475	510 \| 505
B. STACK	623 \| 628	623 \| 628	632 \| 637	641 \| 646
C. EFFECTIVE TOPTUBE LENGTH	543 \| 540	578 \| 575	606 \| 603	639 \| 636
D. SEATTUBE LENGTH	360	390	430	460
E. EFFECTIVE SEATTUBE ANGLE	79.6° \| 79.1°	78.8° \| 78.3°	78.1° \| 77.6°	77.5° \| 77°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780
ACTUAL SEATTUBE ANGLE	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°
SEATTUBE OFFSET AT BOTTOM BRACKET	100	100	100	100
F. HEADTUBE LENGTH	100	100	110	120
G. HEADTUBE ANGLE	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°
H. CHAINSTAY LENGTH	434 \| 436	434 \| 436	440 \| 442	440 \| 442
I. WHEELBASE	1196 \| 1198	1231 \| 1233	1266 \| 1268	1301 \| 1303
J. BOTTOM BRACKET DROP (FRONT)	35 \| 42	35 \| 42	35 \| 42	35 \| 42
J. BOTTOM BRACKET DROP (REAR)	15 \| 22	15 \| 22	15 \| 22	15 \| 22
K. ESTIMATED BOTTOM BRACKET HEIGHT	340 \| 333	340 \| 333	340 \| 333	340 \| 333
STANDOVER HEIGHT	675 \| 685	690 \| 700	705 \| 715	720 \| 730
