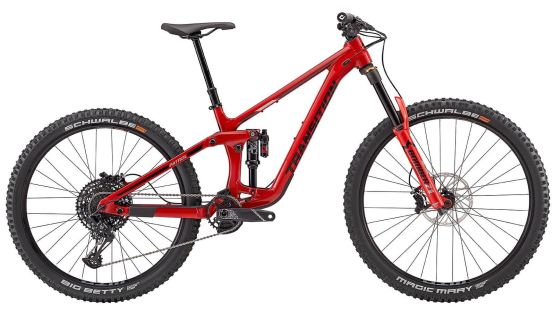

Patrol Alloy NX

Specifiche

Specifiche di montaggio

Voce	Specifica
Frame	Fox Float X Performance Elite (205x60)
Fork	Marzocchi Bomber Z1 Air, 160 mm travel / 44 mm offset
Headset	FSA N.55R/57
Stem	ANVL Swage, 40 mm
Handlebar	RaceFace Chester 35 – SM (780x20) / MD-LG-XL (780x35)
Grips	ODI Elite Flow
Saddle	ANVL Forge Cromo oppure SDG Bel Air 3
Seatpost	OneUp Dropper Post
Brakes	SRAM Code R oppure SRAM Guide RE 4-Piston
Rotors	SRAM Centerline, 200 mm
Shifter	SRAM NX Eagle MMX
Rear derailleur	SRAM NX Eagle
Cassette	SRAM PG-1230, 10-50t
Chain	SRAM NX Eagle
Chainguide	OneUp Bash Guide
Crankset	SRAM Descendent 6K DUB, 32t / 165 mm
Rims	Stan’s Flow D oppure WTB ST i30
Tire front	Schwalbe Magic Mary, Super Trail Soft, 29x2.4
Tire rear	Schwalbe Big Betty, Super Trail Soft, 27.5x2.4
Included	Tubeless valves & sealant

Geometrie

	SM	MD	LG	XL
	High \| Low	High \| Low	High \| Low	High \| Low
Fits Rider Heights	5'0" – 5'7"	5'6" – 5'11"	5'9" – 6'3"	6'1" – 6'7"
A. REACH	420 \| 415	455 \| 450	480 \| 475	510 \| 505
B. STACK	623 \| 628	623 \| 628	632 \| 637	641 \| 646
C. EFFECTIVE TOPTUBE LENGTH	543 \| 540	578 \| 575	606 \| 603	639 \| 636
D. SEATTUBE LENGTH	360	390	430	460
E. EFFECTIVE SEATTUBE ANGLE	79.6° \| 79.1°	78.8° \| 78.3°	78.1° \| 77.6°	77.5° \| 77°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780
ACTUAL SEATTUBE ANGLE	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°
SEATTUBE OFFSET AT BOTTOM BRACKET	100	100	100	100
F. HEADTUBE LENGTH	100	100	110	120
G. HEADTUBE ANGLE	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°
H. CHAINSTAY LENGTH	434 \| 436	434 \| 436	440 \| 442	440 \| 442
I. WHEELBASE	1196 \| 1198	1231 \| 1233	1266 \| 1268	1301 \| 1303
J. BOTTOM BRACKET DROP (FRONT)	35 \| 42	35 \| 42	35 \| 42	35 \| 42
J. BOTTOM BRACKET DROP (REAR)	15 \| 22	15 \| 22	15 \| 22	15 \| 22
K. ESTIMATED BOTTOM BRACKET HEIGHT	340 \| 333	340 \| 333	340 \| 333	340 \| 333
STANDOVER HEIGHT	675 \| 685	690 \| 700	705 \| 715	720 \| 730
