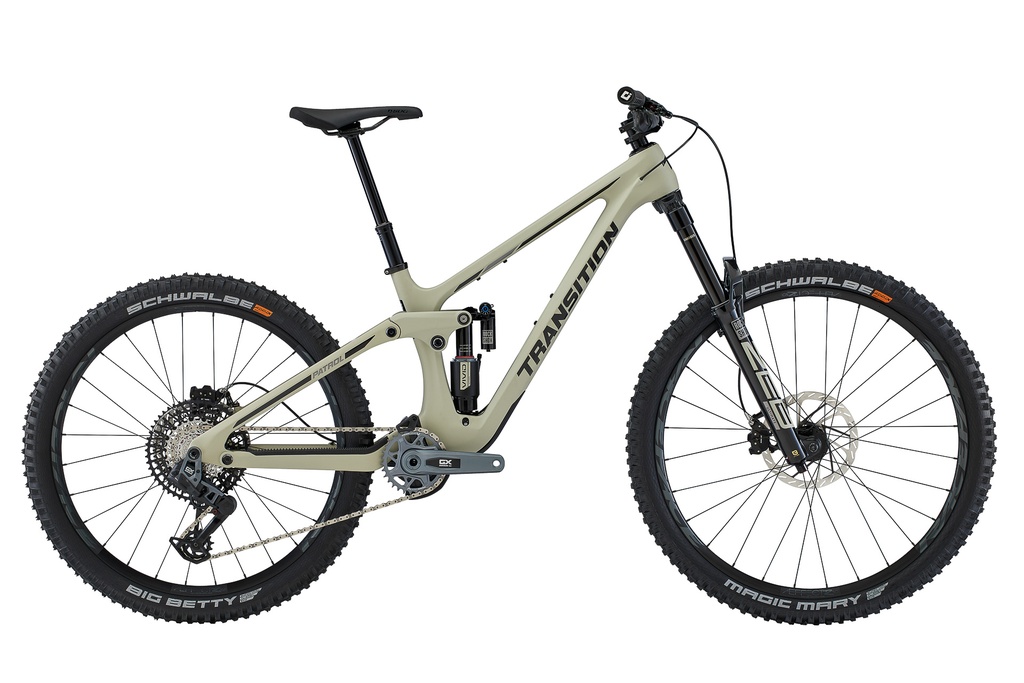

Patrol Carbon GX AXS

La Patrol sfoggia un nuovo look, ma è sempre pronta a tutto e senza rimorsi quando si tratta di affrontare i sentieri con grinta. Essendo una delle bici più longeve della nostra gamma, era la candidata perfetta per un aggiornamento. La geometria rivista, progettata per ospitare ruote da 29" all’anteriore e 27.5" al posteriore, insieme a una nuova taratura delle sospensioni, potrebbe farti pedalare tutto il giorno… e poi tutta la notte. Con salti, trick, pompate e grida di entusiasmo lungo il percorso, la nuova Patrol è nata per il divertimento. Dai bike park ai sentieri locali, a lei non importa dove pedali, ma solo quanto ti stai divertendo.

Specifiche

Colore	Beachwood, Blue Lagon
Taglia	S, M, L, XL
Brand	Transition
Materiale	Carbonio
Allestimento	GX AXS
Tipologia	Bicicletta completa
Anno di uscita	2025

Specifiche di montaggio

Specifiche Tecniche

Model	Patrol Carbon GX AXS
Color Options	Blue Lagoon, Beachwood
Frame	Patrol Carbon 160mm
Wheel Size	Mixed
Rear Shock	RockShox Vivid Ultimate (205x60mm)
Fork	RockShox ZEB Ultimate (160mm)
Headset	FSA NO.55R/57
Stem	ANVL Swage (40mm)
Handlebar	ANVL Mandrel Alloy 35
	SM(800x20mm), MD(800x30mm), LG/XL(800x40mm)
Grips	ODI Elite Flow Lock-On
Saddle	SDG Bel Air 3 LUX
Seatpost	OneUp Dropper Post
	SM(150mm), MD(180mm), LG(210mm), XL(240mm)
Brakes	SRAM Maven Silver
Rotors	SRAM HS2 (200mm)
Shifter	SRAM POD Bridge MMX
Derailleur	SRAM GX AXS Eagle Transmission
Cassette	SRAM XS T-Type (10-52t)
Chain	SRAM GX Eagle Transmission
Crank	SRAM GX Eagle DUB T-Type (32t/165mm)
Chainguide	OneUp Bash Guide
Rims	RaceFace Aeffect R
Spokes	RaceFace 2.0/1.7/2.0
Hubs	RaceFace Trace 28H
Tire/Front	Schwalbe Magic Mary, Super Trail, Soft (2.4)
Tire/Rear	Schwalbe Big Betty, Super Trail, Soft (2.4)
Included	SRAM AXS Battery Charger, Tubeless Valves & Sealant

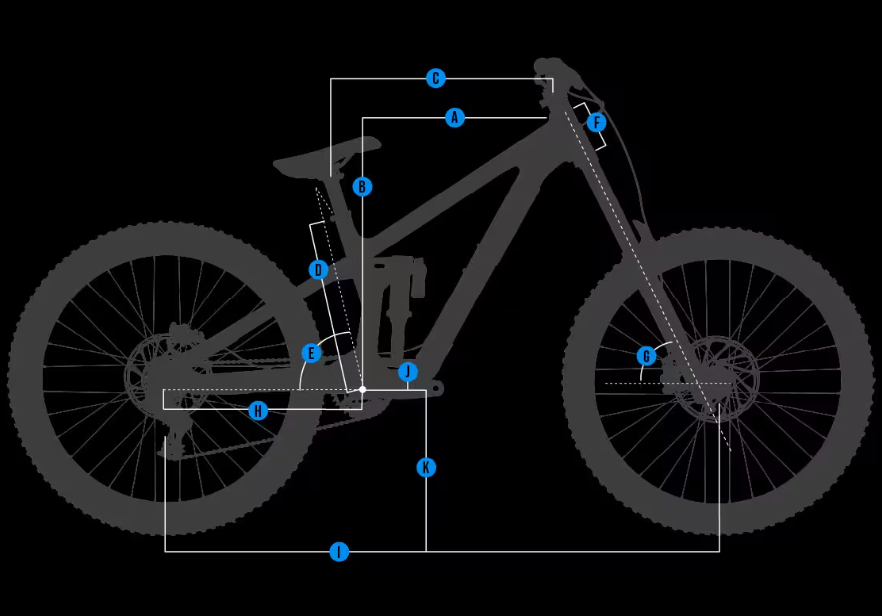

Geometrie

	SM	MD	LG	XL
	High \| Low	High \| Low	High \| Low	High \| Low
Fits Rider Heights	5'0" – 5'7"	5'6" – 5'11"	5'9" – 6'3"	6'1" – 6'7"
A. REACH	420 \| 415	455 \| 450	480 \| 475	510 \| 505
B. STACK	623 \| 628	623 \| 628	632 \| 637	641 \| 646
C. EFFECTIVE TOPTUBE LENGTH	543 \| 540	578 \| 575	606 \| 603	639 \| 636
D. SEATTUBE LENGTH	360	390	430	460
E. EFFECTIVE SEATTUBE ANGLE	79.6° \| 79.1°	78.8° \| 78.3°	78.1° \| 77.6°	77.5° \| 77°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780
ACTUAL SEATTUBE ANGLE	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°
SEATTUBE OFFSET AT BOTTOM BRACKET	100	100	100	100
F. HEADTUBE LENGTH	100	100	110	120
G. HEADTUBE ANGLE	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°
H. CHAINSTAY LENGTH	434 \| 436	434 \| 436	440 \| 442	440 \| 442
I. WHEELBASE	1196 \| 1198	1231 \| 1233	1266 \| 1268	1301 \| 1303
J. BOTTOM BRACKET DROP (FRONT)	35 \| 42	35 \| 42	35 \| 42	35 \| 42
J. BOTTOM BRACKET DROP (REAR)	15 \| 22	15 \| 22	15 \| 22	15 \| 22
K. ESTIMATED BOTTOM BRACKET HEIGHT	340 \| 333	340 \| 333	340 \| 333	340 \| 333
STANDOVER HEIGHT	675 \| 685	690 \| 700	705 \| 715	720 \| 730

	SM	MD	LG	XL
	High \| Low	High \| Low	High \| Low	High \| Low
Fits Rider Heights	5'0" – 5'7"	5'6" – 5'11"	5'9" – 6'3"	6'1" – 6'7"
A. REACH	420 \| 415	455 \| 450	480 \| 475	510 \| 505
B. STACK	623 \| 628	623 \| 628	632 \| 637	641 \| 646
C. EFFECTIVE TOPTUBE LENGTH	543 \| 540	578 \| 575	606 \| 603	639 \| 636
D. SEATTUBE LENGTH	360	390	430	460
E. EFFECTIVE SEATTUBE ANGLE	79.6° \| 79.1°	78.8° \| 78.3°	78.1° \| 77.6°	77.5° \| 77°
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780
ACTUAL SEATTUBE ANGLE	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°	70.5° \| 70°
SEATTUBE OFFSET AT BOTTOM BRACKET	100	100	100	100
F. HEADTUBE LENGTH	100	100	110	120
G. HEADTUBE ANGLE	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°	63.5° \| 63°
H. CHAINSTAY LENGTH	434 \| 436	434 \| 436	440 \| 442	440 \| 442
I. WHEELBASE	1196 \| 1198	1231 \| 1233	1266 \| 1268	1301 \| 1303
J. BOTTOM BRACKET DROP (FRONT)	35 \| 42	35 \| 42	35 \| 42	35 \| 42
J. BOTTOM BRACKET DROP (REAR)	15 \| 22	15 \| 22	15 \| 22	15 \| 22
K. ESTIMATED BOTTOM BRACKET HEIGHT	340 \| 333	340 \| 333	340 \| 333	340 \| 333
STANDOVER HEIGHT	675 \| 685	690 \| 700	705 \| 715	720 \| 730
