| WEIGHT |
10.35 kg |
| ISO norm |
ISO 4210-2 Road Racing bicycles |
| EN norm |
EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm |
| LOAD CAPACITY |
120 Kg |
| FRAME |
Alu X6 Ultralite X-Road Race , Road Advanced Geometry, Smooth Welding,
Disc Brake Flat mount, BB BSA 68mm, Integrated Cable Routing, Full Carbon
front fork; mudguadrs ready |
| FORK |
X-ROAD Carbon Fork |
| BOTTOM BRACKET |
SHIMANO BB-RS501, BSA, shell 68mm |
| HEADSET |
ACROS AIX-643, ICR, OD56, IS52/28.6 - 40IPS |
| FRONT AXLE |
SB02, TA12x119, M12xP1.5x8.5L, Black |
| REAR AXLE |
SB02, TA12x165, M12xP1.5x14L, Black |
| SHIFTERS LEFT |
SHIMANO 105 R7120, 2-speed |
| SHIFTERS RIGHT |
SHIMANO 105 R7120, 12-speed |
| FRONT DERAILLEUR |
SHIMANO 105 FD-R7100, Down Swing, Down Pull, Brazed-On Type |
| REAR DERAILLEUR |
SHIMANO 105 RD-R7100, Shadow Design |

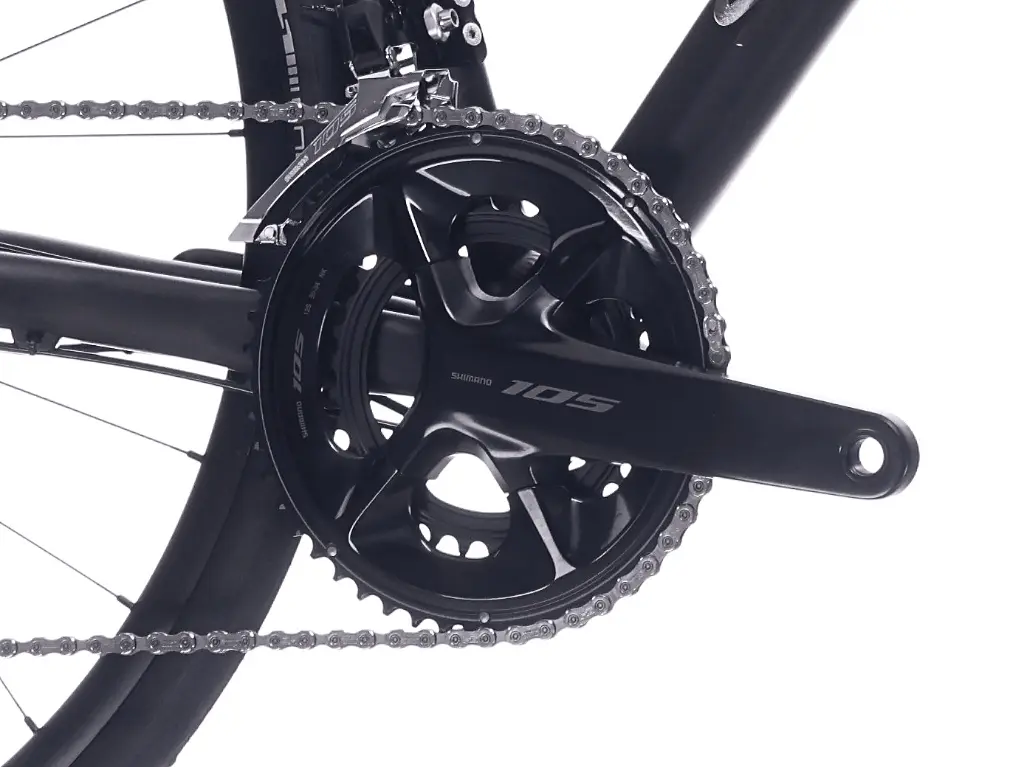

| CRANKSET |
SHIMANO 105 FC-R7100, Hollowtech II, 50-34T |
| CASSETTE |
SHIMANO 105 CS-R7101, 12 speed, 11-34T |
| CHAIN |
SHIMANO DEORE CN-M6100 |

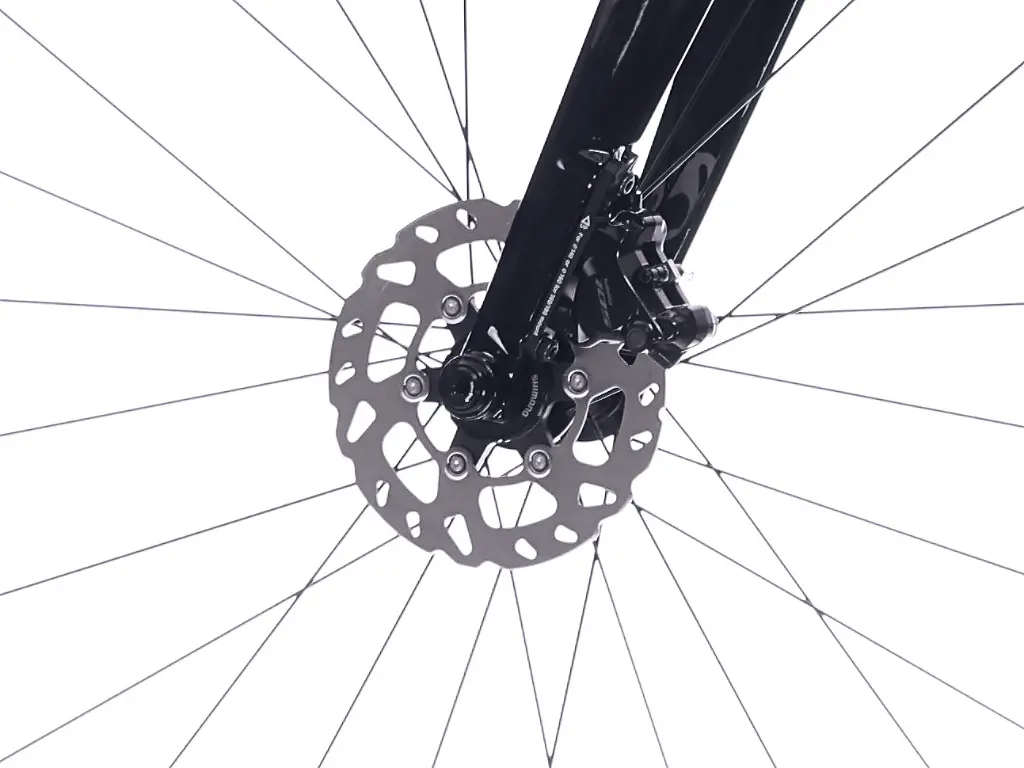

| BRAKE FRONT |
SHIMANO 105 R7120, hydraulic disc brake |
| ROTOR FRONT |
SHIMANO SM-RT70, 160mm |
| BRAKE REAR |
SHIMANO 105 R7120, hydraulic disc brake |
| ROTOR REAR |
SHIMANO SM-RT70, 140mm |
| HUB FRONT |
SHIMANO HB-RS470, 28H, CL, 12x100mm, THRU Type AXLE |

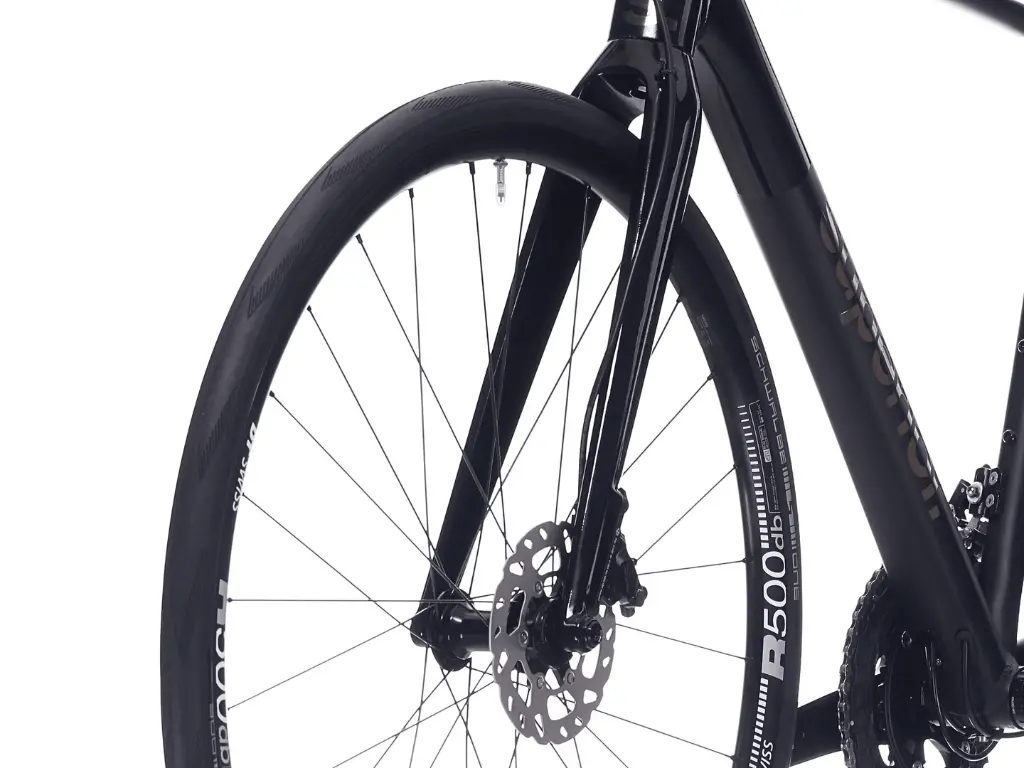

| RIM FRONT |
DT Swiss R500, Disc, 28H, Tubeless Ready |
| TIRE FRONT |
Schwalbe One Performance, RaceGuard, 30-622, ADDIX |
| HUB REAR |
SHIMANO FH-RS470, 28H, CL, 12x142mm, THRU Type AXLE |
| RIM REAR |
DT Swiss R500, Disc, 28H, Tubeless Ready |
| TIRE REAR |
Schwalbe One Performance, RaceGuard, 30-622, ADDIX |
| SPOKES |
SAPIM Race, Stainless Black |
| NIPPLES |
SAPIM, Alloy |
| STEM |
ONE Race ICR, Alloy, 31,8mm, -7° |

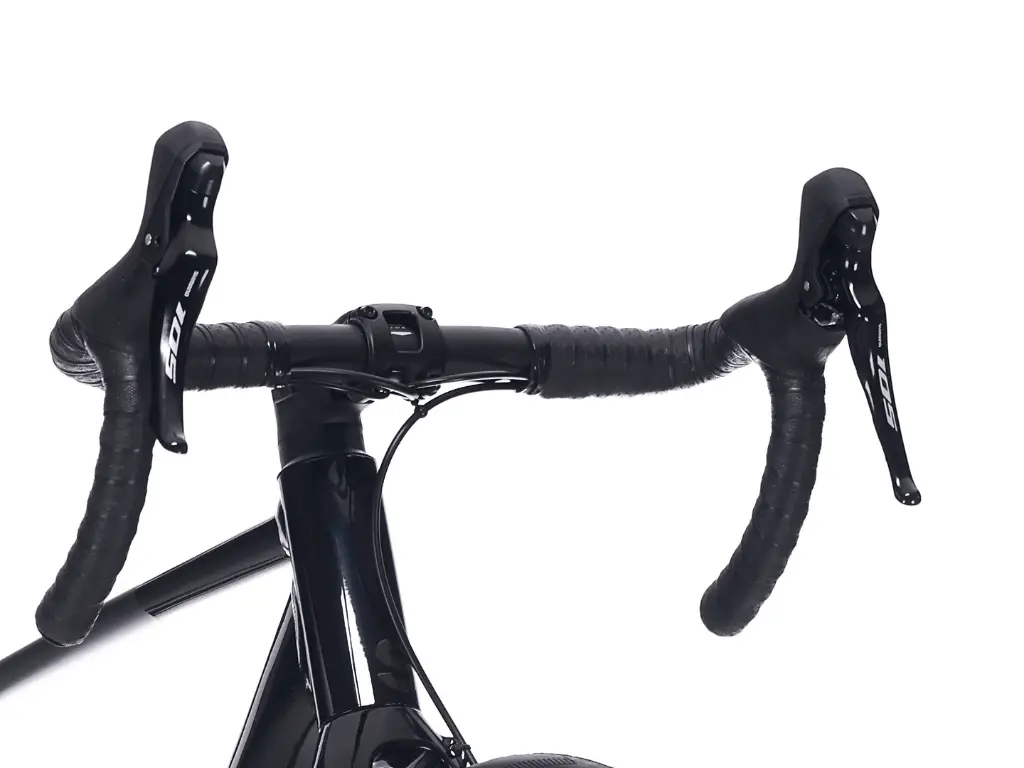

| HANDLEBAR |
ONE Alloy, X-Race Aero, 31.8mm, Reach 70mm, Drop 127mm, Flare 2°,
Backsweep 6° |
| GRIPS LEFT |
ONE Handlebar Tape |
| SADDLE |
Selle Royal SRX, 148mm |
| SEATPOST |
ONE Race, Alloy, 27.2mm |
| SEATPOST CLAMP |
ONE CC-080A, 31.8mm, Black |
